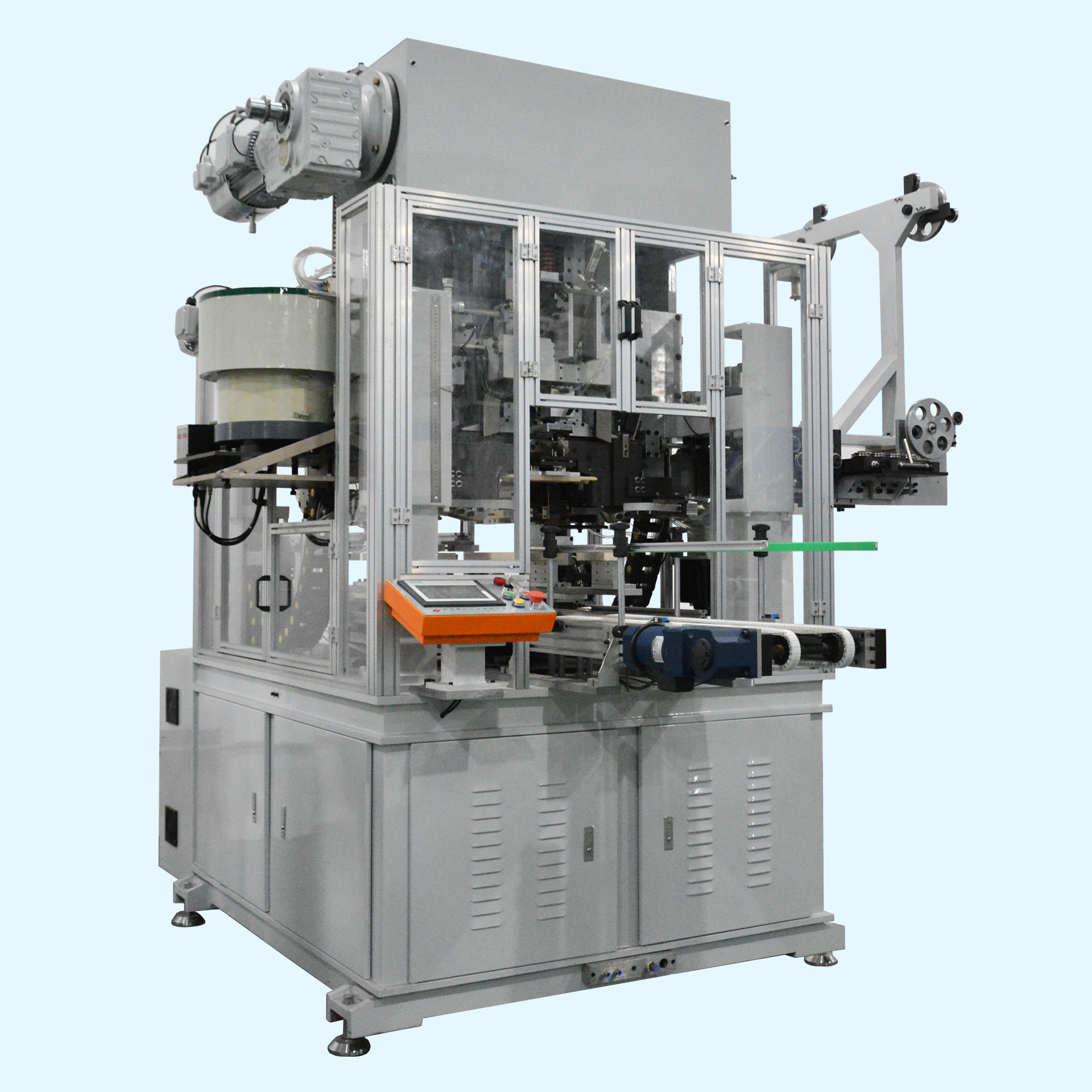

产品简介
该设备是新宜为客户研制的经济型提手机，速度可达到30罐以上／分钟，采用凸轮传动、凸轮搬送。独创的平底“U”型钩设计，使提手不容易脱扣且避免戳穿罐壁。采用传感器寻焊缝定位与机械定位结合，使穿钩定位更精准。采用V型轴承纠正铁线，由轮槽送至成型，更换铁线方便。该设备配套花兰桶全自动生产线使用，让生产更高效，安全。
Product Introduction
This economic wire handle machine is special made for customers, using cam transmission, cam conveying,which can reach 30cpm up.The forming of the wire handle is flat U shape hook & fold inside to make the wire handle not easy to come out and not pierce through pail body.Locating by sensor & mechanical combined, it makes the hook insert more precisely. It uses V-shape bearing to correct the wire from wire feeding rollers to forming, making the changeover of wire more convenient. This machine can be perfectly connected with the automatic production line for pails, to make it more efficient & safe.
主要技术参数
Main Technical Parameters
生产速度：30罐／分钟
生产范围：Φ220-Φ300mm
适用高度：280-500mm
筋离焊耳距离：≥20mm
焊耳离桶口距离：35+(L-180)~65+(L-180)mm
提手铁线直径：3.5-4.0mm
整机功率：15KW
使用气压：≥0.6Mpa
连接高度：1000±20mm
机器重量：约4吨
整机尺寸：（长x宽x高）2720x2940x2720mm
Output:30CPM
Production range:Φ220mm-Φ300mm
Applicable height:280-500mm
Distance between beading and ears:≥20mm
Distance between top end and ears:35+(L-180)~65+(L-180)mm
Wire diameter:3.5-4.0mm
Whole power:15KW
Applicable air pressure:≥0.6Mpa
Connecting height:1000±20mm
Weight:App.4T
Dimension(LXWXH):2720x2940x2720mm
