设备简介

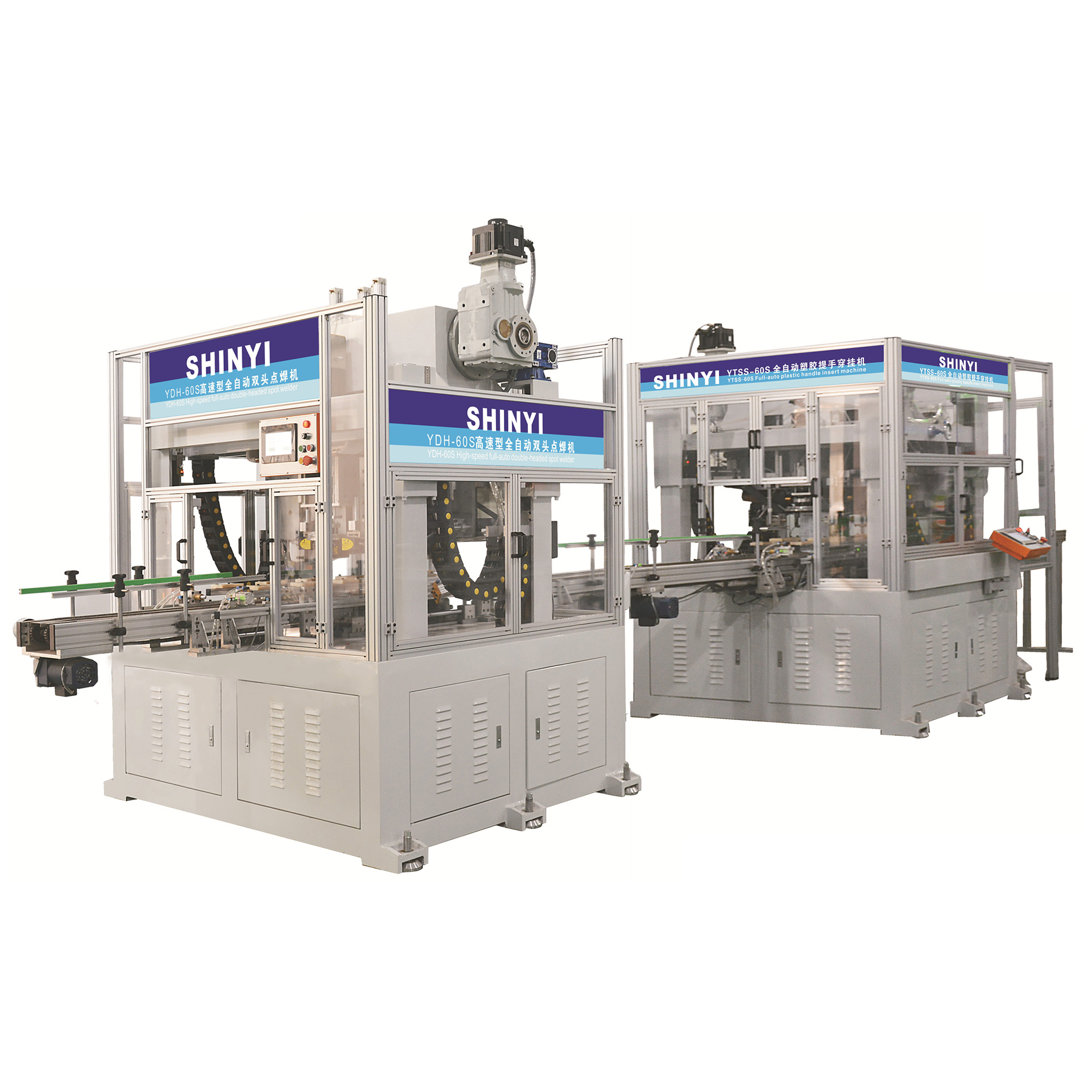

该设备解决了小圆罐提手自动化穿挂的难题，采用排列式塑料提手，在设备上进行剪切、穿挂。采用寻缝定位装置、凸轮传动、凸轮式搬送，穿挂定位精准，节约大量人力成本，与前道点焊机形成完美配套，让生产更高效省力。
AdvantagesS
This machine solves the problem of how to automatically put the plastic handle on the small round can. It uses the in-line plastic handles to cut & attach by the machine. It also uses locating by sensor, cam transmission, cam conveying to make the attaching precise and save mass labor cost. It can be perfectly connected with the ear welder, to make it more efficient & labor saving.
主要技术参数
生产速度：60罐／分钟
适用罐形：各种马口铁铁制圆罐
生产范围：Φ155-Φ180mm
适用高度：155-300mm
顶端到罐耳中心距：35-45mm（可调节）
整机功率：20KW
使用气压：>0.6Mpa
机器重量：约4.3吨
整机尺寸：（长x宽x高）3530x1880x2610mm
Main Technical Parameters
Output: 60 CPM
Applicable cans:Tinplate round can
Production range:Φ155mm-180mm
Applicable height:155-300mm
Distance between the top end and the center of ears:35-45mm(Adjustable)
Whole power:20KW
Applicable air pressure:≥0.6Mpa
Weight:App.4.3T
Dimension(LXWXH):3530x1880x2610mm
